Directions

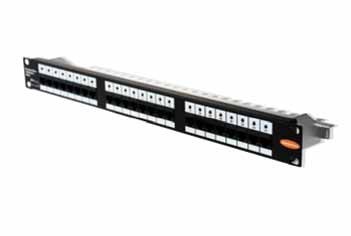

All Epanels can be management by DICS system. Support 24 Cats ports in Rack 1U, RJ45. Each port have LED upon, guide patching when flash. Used 9-pin in 10 of RJ45 to transmission the management information.
In the right of panels have two LED with red and green, can direct the panels type. Of the Back of panels, using standard 110 IDC, support T568A and T568B both. PCB protecting, can protect the PCB when do 110 installation. A RJ45 with 8-pin located on the center of Panel Back, connected with ISU.
Specifications
24 RJ45 ports, 1 RACK unit
Enhanced CAT6 performance, enough margin,
support 1Gbps transportation
Standard IDC cable connection
Support T568A with T568B both
With cable management
LED upon each RJ45 port, patching guide
Two LEDs righ located on panel different color with
red and green, for panel type direction
Standard RJ45 with 10-pins
PCB protection
Connected with ISU using RJ45 cable
DICS Performance
Self-scanning in each panel
High speed of port scanning
Self-management of Database
Self-management of Alarm information
LED flashing with two ways:
Slow: Guide how to connect or disconnect the patch cords ( Ports empty, then do link, Ports with cable, do disconnect)
High: Alarm mode, means un-authorization patching need correct
Panel type LED
Red: S type, connected with Switch
Green: C type, connected with horizontal Cable
Technical Specification
Size(H*W*D) 44.5×483×38mm
Material: Aluminium, Spray-apint, Blank
Plastic: retrieve
Connector:
Environmentalprotection: Weld with no-plumbum
Part No.:
| Part No. |
Description |
|
ASEPU02460
|
Cat6 UTP IDC intelligent patch panels 24-Port |
|
ASEPF02460
|
Cat6 FTP IDC intelligent patch panels 24-Port |
|
ASEPU0245E
|
Cat5e UTP IDC intelligent patch panels 24-Port |
|
ASEPF0245E
|
Cat5e FTP IDC intelligent patch panels 24-Port |
