Directions

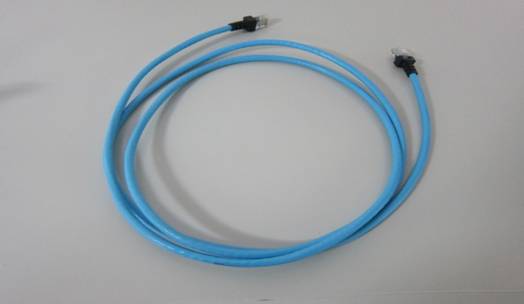

Ecord Patch Cords have Enhanced Cat6 performance, Using RJ45 with 9-pin, which used for information management.
Performance
Enhanced TIA/EIA CAT6 transmission performance
RJ45 with 9-Pin which using for detect and manager the status of each port of panel
Length with 3, 5, 7,10 and 15feet
Support different PVC levels for option
Physics Performance:
Durable test : Over 500 times
Outside-Diameter: 4.57mm
Material of Copper conduct: 50um
Leadcable:23AWGConduct
number: 4pair UTP + 1
Cable Jacket:
PVC/PE
Material of Insulation
CM
CMR
CMP
LSOH
Electric performance:
Insulation Power: 1 minute under 60Hz1000VAC
Compression: 150VAC
Insulation Resistance: 500MΩ
Part No.:
| Part No. |
Description |
|
ASEPCSK**F
|
Cat6 FTP Intelligent Patch Cord RJ45 with 9-pin **Feet |
|
ASEPCSK**U
|
Cat6 UTP Intelligent Patch Cord RJ45 with 9-pin **Feet |
|
ASEPCSJ**F
|
Cat5e FTP Intelligent Patch Cord RJ45 with 9-pin **Feet |
|
ASEPCSJ**U
|
Cat5e UTP Intelligent Patch Cord RJ45 with 9-pin **Feet |
** Available in 3, 5, 7, 10 and 15 feet
|
