Product Description
ASABP6AFBL 4-Pair, 23 AWG, FTP, Solid Copper Cable, CMP, Blue
ASABR6AFBL 4 -Pair, 23 AWG, FTP, Solid Copper Cable, CMR, Blue
Exceeds ANSI/TIA-568 Category 6A standard
Center separator reduces crosstalk
Shielded jacket provides protection against EMI and RFI noise
Sequential footage markings on the outer jacket
Standard Packaging: 1000 feet per reel (305 meters)
Normal Velocity of Propagation (NVP) 65% CMR and 70% CMP
Graph Explanation
These graphs below show Near-End Crosstalk (NEXT) between two pairs of wire which measures unwanted signal transmitted from one pair to another pair on the near end of a UTP or FTP cable.
Listed below are channel-rated performance test results for Ausvigor's CAT 6A cables
Ausvigor's FTP cables provide superior performance, reliability, and exceeds TIA standard
CAT 6A FTP

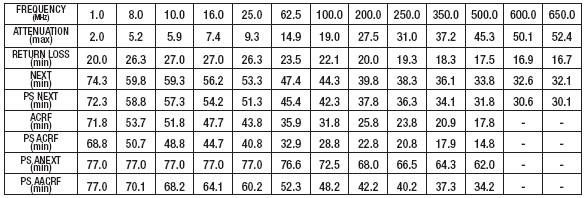

Chart Explanation
These charts below show frequency electrical performance values and are provided for reference only.
Actual compliance testing is based on swept frequency measurements
The specifi cation values are based on TIA-568 standard
Values are expressed in dB per 100M (328 Ft.)
Part No.:
| Part No. |
Pair count
|
Flame Rating
|
Sheath Colour
|
Feet
|
Packaging
|
|
ASABM6AFBL
|
4
|
CM
|
Blue
|
1000
|
Reel
|
|
ASABP6AFBL
|
4
|
CMP
|
Blue
|
1000
|
Reel
|
|
ASABR6AFBL
|
4
|
CMR
|
Blue
|
1000
|
Reel
|
|
ASABL6AFBL
|
4
|
LSZH
|
Blue
|
1000
|
Reel
|
Note:Consult sales for other type of category,pair,sheath & color FTP or SFTP cable
|
