Product Description
ASABP5Exx1 4-Pair, 24 AWG, UTP, Solid Copper Cable, CMP
ASABR5Exx1 4 -Pair, 24 AWG, UTP, Solid Copper Cable, CMR
Exceeds ANSI/TIA-568 Category 5e standard
Rip cord provides easier jacket removal
Sequential footage markings on the outer jacket
Standard Packaging: 1000 feet per EZ Pull Carton (305 meters)
Nominal Velocity of Propagation (NVP) 68% CMR and 72% CMP
Graph Explanation
These graphs below show Near-End Crosstalk (NEXT) between two pairs of wire which measures unwanted signal transmitted from one pair to another pair on the near end of a UTP or FTP cable.
Listed below are channel-rated performance test results for Ausvigor's CAT 5e cables
Ausvigor's UTP cables provide superior performance, reliability, and exceeds TIA standard

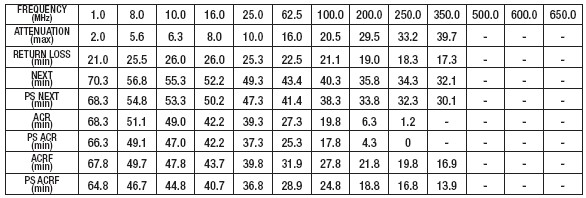

Chart Explanation
These charts below show frequency electrical performance values and are provided for reference only.
Actual compliance testing is based on swept frequency measurements
The specifi cation values are based on TIA-568 standard
Values are expressed in dB per 100M (328 Ft.)
Part No.:
| Part No. |
Pair count
|
Flame Rating
|
Sheath Colour
|
Feet
|
Packaging
|
|
ASABM5EBL
|
4
|
CM
|
Blue
|
1000
|
Box
|
|
ASABP5EBL
|
4
|
CMP
|
Blue
|
1000
|
Box
|
|
ASABR5EBL
|
4
|
CMR
|
Blue
|
1000
|
Box
|
|
ASABL5EBL
|
4
|
LSZH
|
Blue
|
1000
|
Box
|
Note:Consult sales for other type of category,pair,sheath & color cable
|
